Augusta

Model Number: UAUG-100XX

Ratings: IP65 IK07

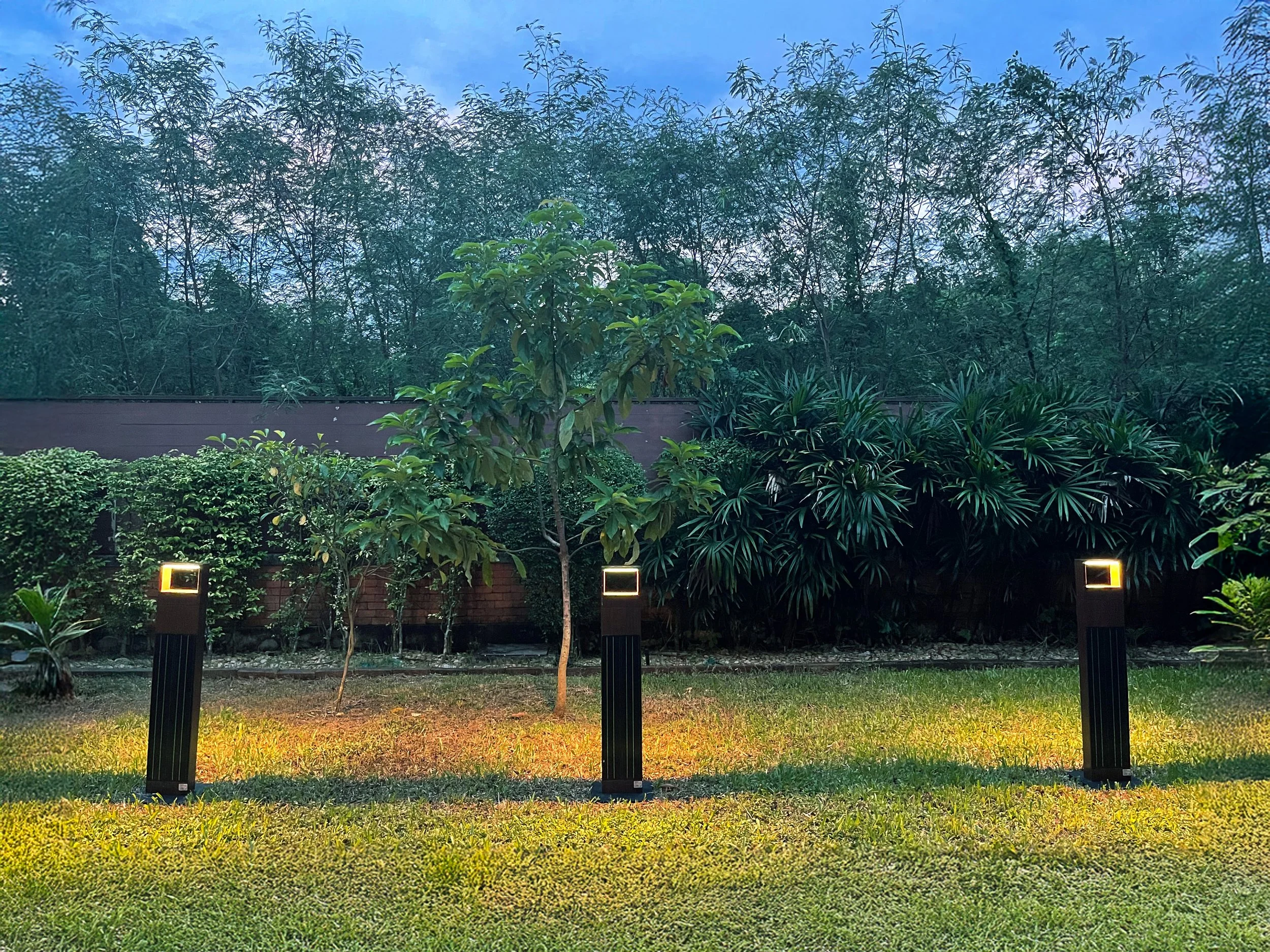

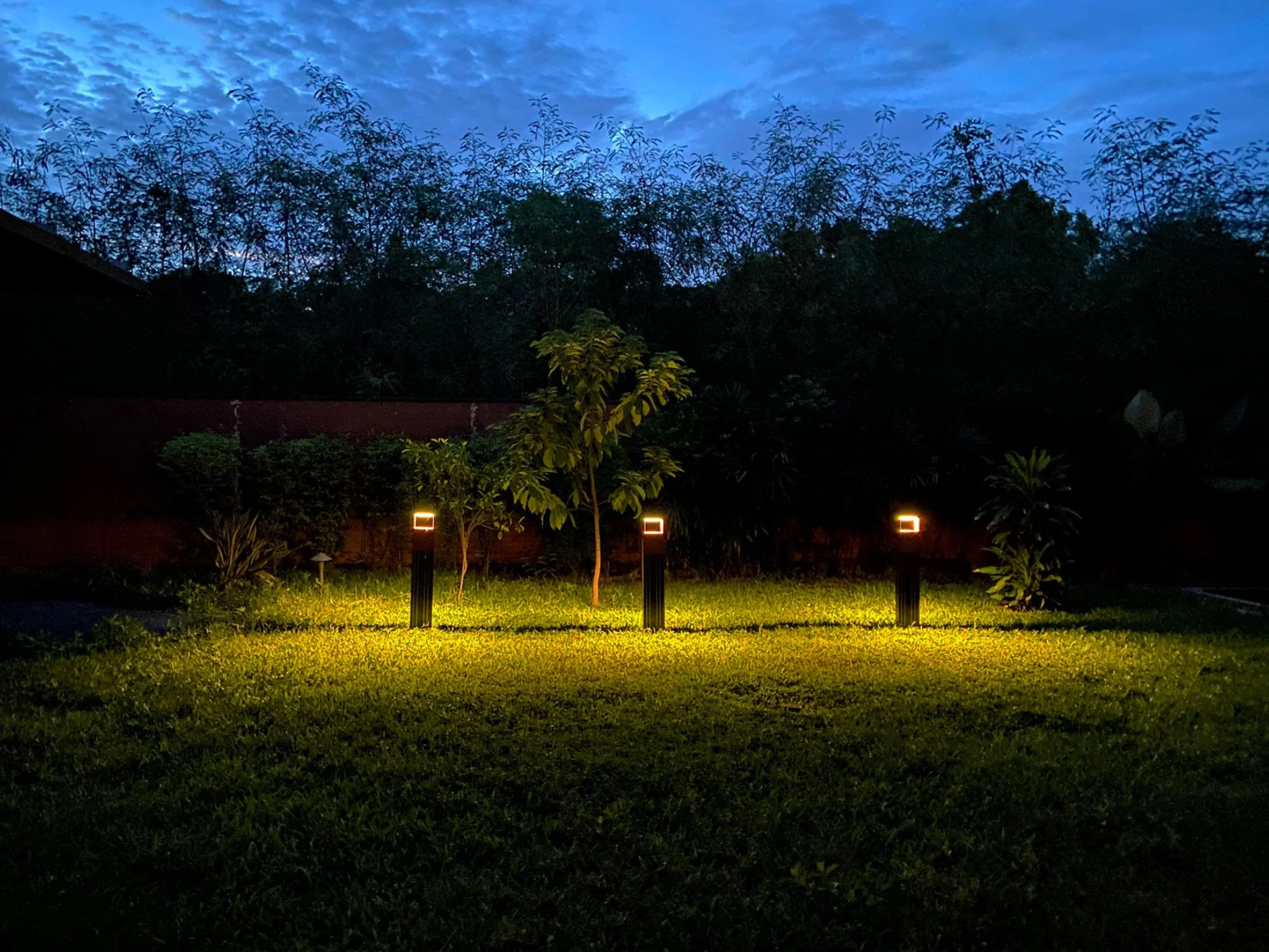

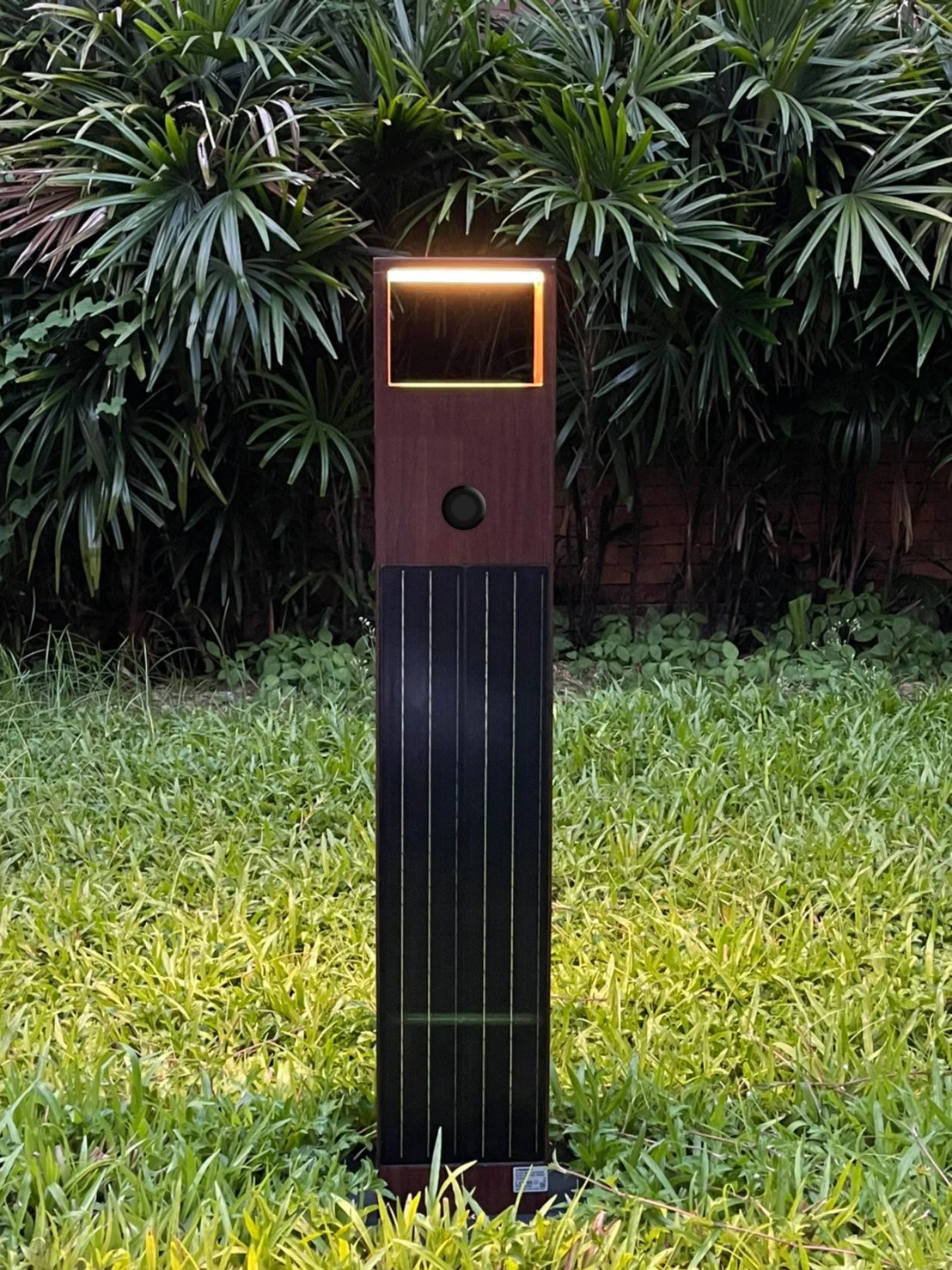

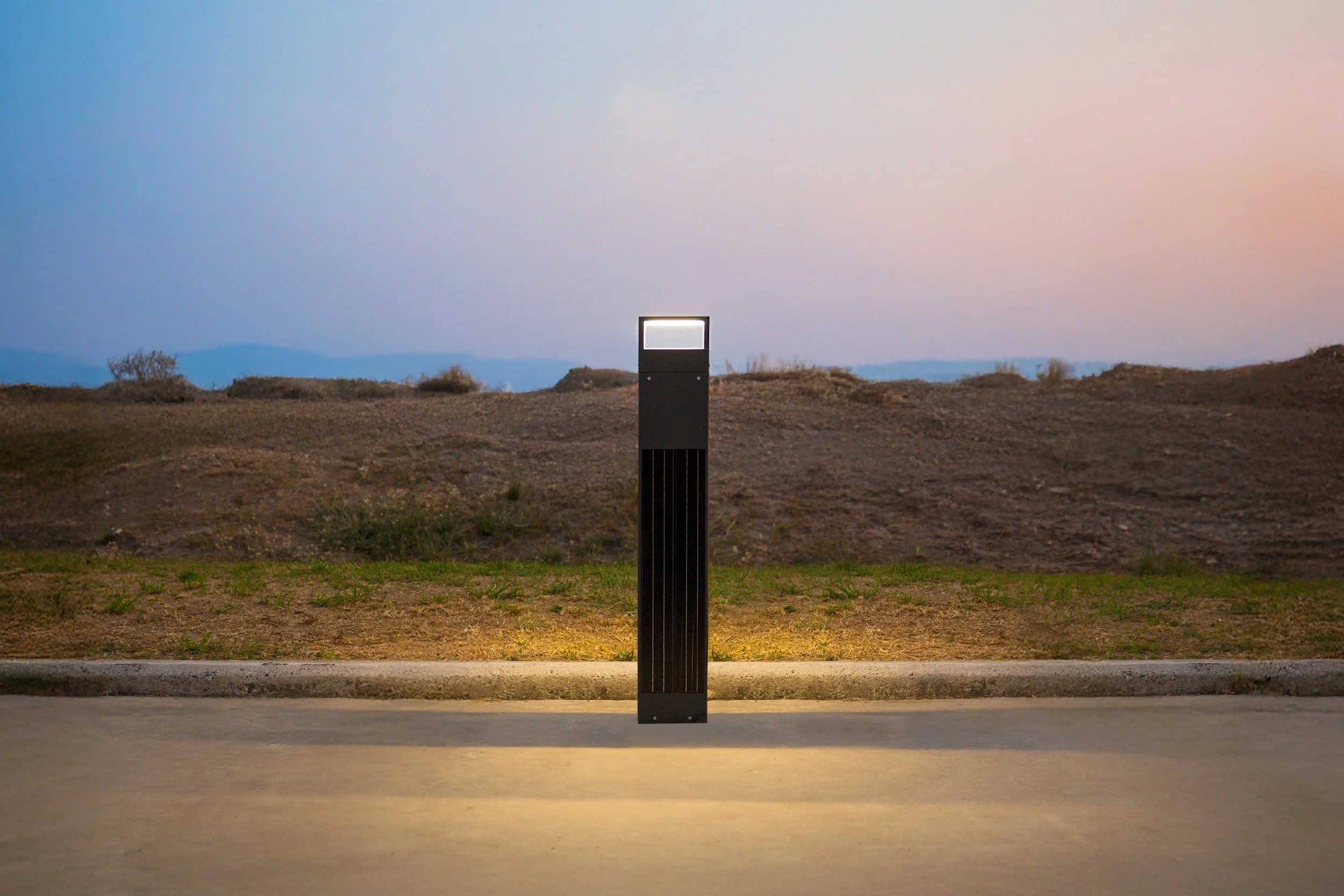

Modern, contemporary solar bollard luminaires providing a minimalistic and urban appeal. The Augusta provides a clean and visually appealing integrated PV solution.

All Ligman fixtures can be manufactured using a special pre-treatment and coating process that ensures the fixture can be installed in natatoriums as well as environments with high concentrations of chlorine or salt and still maintain the 5 year warranty. For this natatorium rated process please specify NAT in options.

• Die-cast aluminum housing

• Extruded aluminum column

• Pre-treated before powder coating ensuring high corrosion resistance

• Grade 316 stainless steel fasteners

• Durable silicone rubber gasket

• Clear tempered glass

• Solar panel mono-crystalline silicon high-efficiency 4x10W

• Lithium Iron Phosphate (LiFePO4 ) battery 18Ah 12Vdc

• Solar charger controller system 12V 10A

• Different dimming scenarios: 5 Step dimming, 2 Step dimming, Dusk to Dawn (D2D) and Custom hours

• Maximum 15 hours of operation time (100%)

• Without any sun (Autonomy), the battery would last for maximum 5 days

• Full automatic electronic protection function against short circuit, overcurrent, overload, overvoltage and high temperature

• Peak Sun-Hour used in the calculations is 3 hours per day

• Remote solar charge controller

• Standard: Off-grid, 100% solar, not connected to the utility grid. Utility grid connection is available upon request
